CBB15 Welding Inverter DC Filter Capacitor's Application:
1. Used in filter, absorption, blocking, and resonance circuits of high-frequency switching power supply.
2. Widely applied to EMI, such as high-frequency welding inverters, UPS, electric vehicles, etc.
Cn (μF) | Un (V) | Imax (A) | dv/dt (V/μs) | Ls (nH) | U t-t (V) | U t-c (V) | tgδ (20℃,10kHz) | Size (mm) |
CBB15(SFPEC) | ||||||||
0.47 | 1200VDC | 7 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | 46×18×34 |
1 | 1200VDC | 15 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | 46×34×36 |
2 | 1200VDC | 25 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | 50×46×50 |
3 | 1200VDC | 35 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | 50×46×50 |
30 | 1250VDC | 30 | 200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤100×10-4 | 74×46×49 |
40 | 1250VDC | 40 | 200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤100×10-4 | 74×46×49 |
CBB16(SFPEC) | ||||||||
2 | 500VAC | 25 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | ф63×49 |
3 | 500VAC | 35 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | ф63×49 |
4 | 500VAC | 50 | 1200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | ф63×49 |
5 | 500VAC | 60 | 1300 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | ф63×49 |
6 | 500VAC | 80 | 1400 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤10×10-4 | ф76×49 |
10 | 1400VDC | 6 | 200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤30×10-4 | ф50×60 |
20 | 1400VDC | 10 | 200 | ≤10 | 1800V, 10S | 3000VAC,60S | ≤30×10-4 | ф50×60 |
50 | 350VDC | 14 | 200 | ≤10 | 600V, 10S | 3000VAC,60S | ≤30×10-4 | ф50×60 |
40 | 800VDC | 10 | 200 | ≤10 | 1200V, 10S | 3000VAC,60S | ≤30×10-4 | ф40×60 |

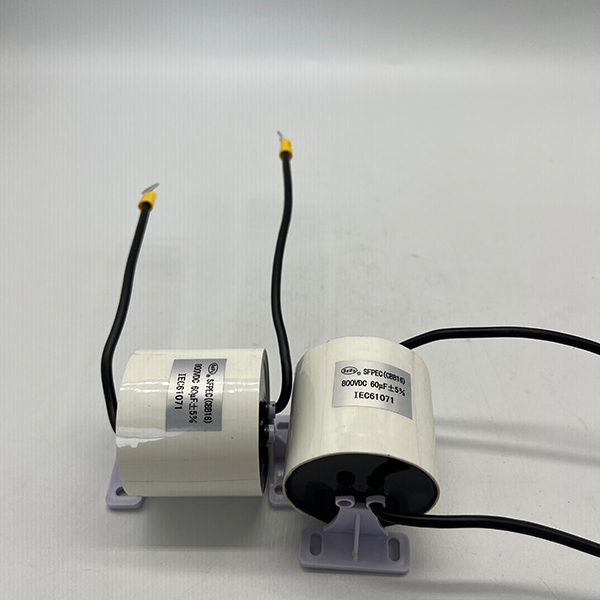

60 | 800VDC | 15 | 200 | ≤10 | 1200V, 10S | 3000VAC,60S | ≤30×10-4 | ф50×60 |
100 | 800VDC | 28 | 200 | ≤10 | 1200V, 10S | 3000VAC,60S | ≤30×10-4 | ф62×60 |
200 | 800VDC | 26 | 200 | ≤10 | 1200V, 10S | 3000VAC,60S | ≤30×10-4 | ф60×110 |
Note: Other specifications and sizes outside the table are negotiable.
1. Used to absorb or filter high-frequency impulses in high-power high-frequency switches.
2. Low ESR, high ripple current and large current shock handling capabilities.
3. Low LS, good high-frequency characteristics
4. Self-healing property
5. Long lifetime
6. Plastic case, resin sealing
We've got the high-quality capacitors, contact us now!
