Name: CBB61 Fan Capacitor with 2 Wires
Brand: Anhui Safe Electronics Co., Ltd.

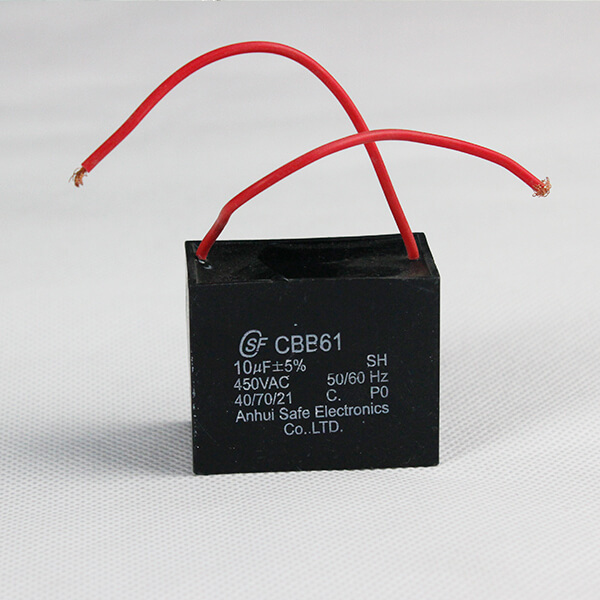

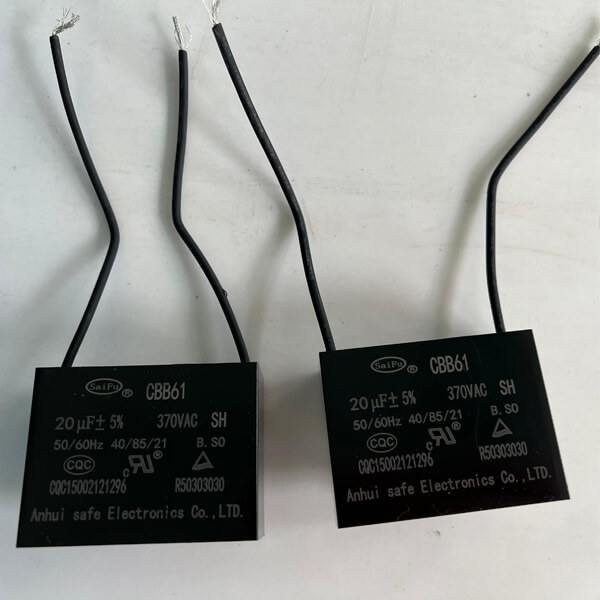

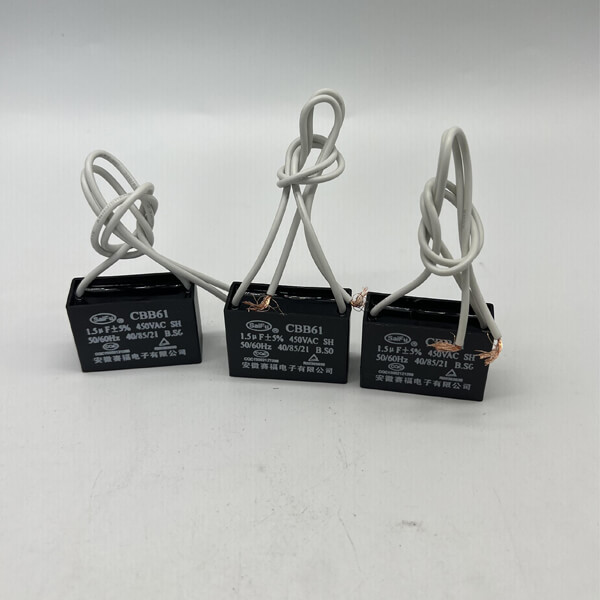

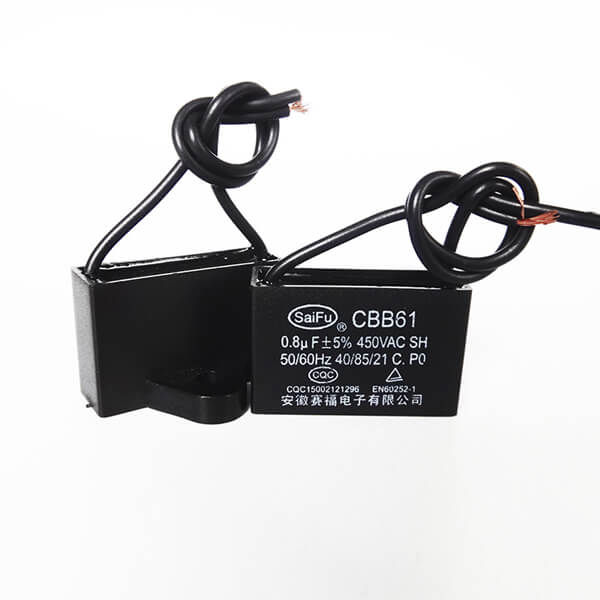

CBB61 Fan Capacitor with 2 Wires

CBB61 film capacitor is a machine suitable for the starting and running of single-phase motors with a frequency of 50HZ AC power supply, and can also play a role in speed regulation of the motor. It is characterized by plastic shell encapsulation, good appearance consistency; small high frequency loss, suitable for large current; high insulation resistance, good self-healing and long life. It is an important supporting component for electric fans, range hoods, air-conditioning fans, and bread machines.

Specification of CBB61 Fan Capacitor With 2 Wires

Reference standards	GB/T 3667.1（ IEC60252-1）
Climatic category	40 / 70 / 21, 40 / 85 / 21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S0 /S3
Voltage range	250VAC, 370VAC, 440VAC, 450VAC
Capacitance range	1～35μF
Capacitance tolerance	± 5% , ± 10%., ± 15%
Dissipation factor	20 x10^-⁴ (100Hz,20°C)
Test voltage terminal to terminal U_TT	2Un for 2 seconds
Test voltage terminal to case U_TC	(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation resistance	≥3000s (100Hz，20°C, 1min)

Structure of CBB61 Fan Capacitor With 2 Wires

The capacitor core is wound by the metalized organic film.
Plastic shell, flame retardant epoxy resin potting, single capacitor core, or multi-capacitor core can be installed in one shell.
The installation components include plastic ears and iron ears.
The lead-out methods include plastic-encapsulated leads, tinned copper pins, quick-connect terminals, soldering lugs, etc.

Capacitor in Furnace

Dimensions(mm):

Specifications	450VAC	250VAC
1μF	37×13×23	37×13×23
1.2μF	37×13×23	37×13×23
1.5μF	37×14×25	37×13×23
2μF	37×16×28	37×13×23
2.5μF	37×18×28	37×14×25
3μF	47×18×29	37×14×25
3.5μF	47×18×34	37×16×28
4μF	47×18×34	37×16×28
4.5μF	47×22×34	37×16×28
5μF	47×22×34	37×18×28
5.5μF	47×22×34	37×18×28
6μF	47×22×34	47×18×29
6.5μF	48×26×38	47×18×29
7μF	48×26×38	47×18×29
8μF	48×26×38	47×18×34
10μF	58×26×44	47×22×34
12μF	58×26×44	47×22×34
15μF	58×26×44	47×22×34
16μF	58×26×44	48×26×38
20μF	58×35×49	48×26×38
25μF	58×35×49	48×26×38
30μF	negotiable	58×26×44
35μF	negotiable	58×26×44

Note: Other specifications、size and terminal outside the table are negotiable.

Features of CBB61 Fan Capacitor With 2 Wires

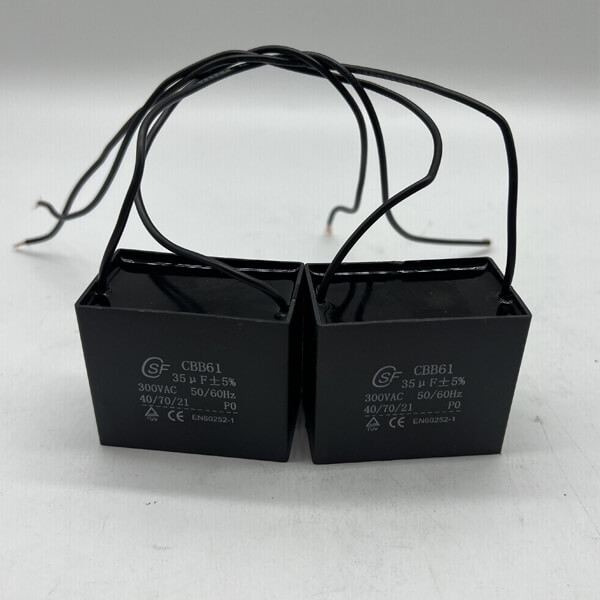

CBB61 capacitor 16uf 250vac is widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property.
Good stability and reliability.
