Name: CBB65 Running Capacitor with 2 Wires
Brand: Anhui Safe Electronics Co., Ltd.

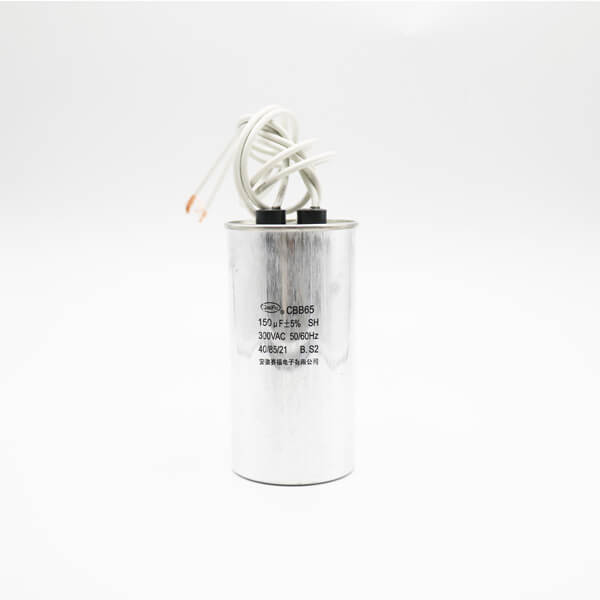

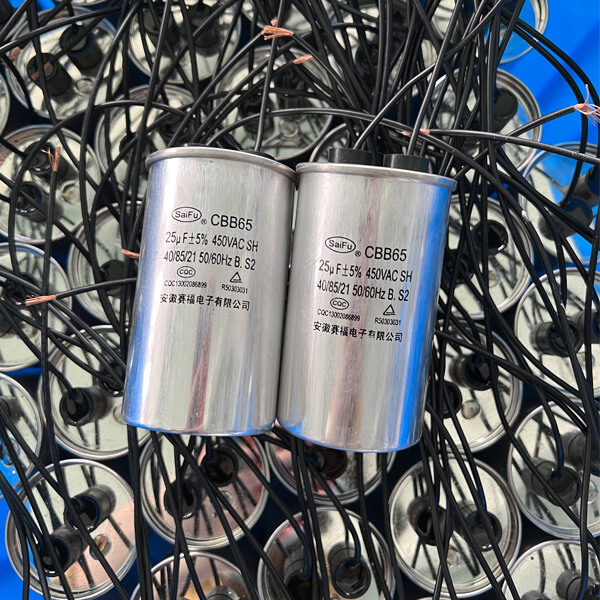

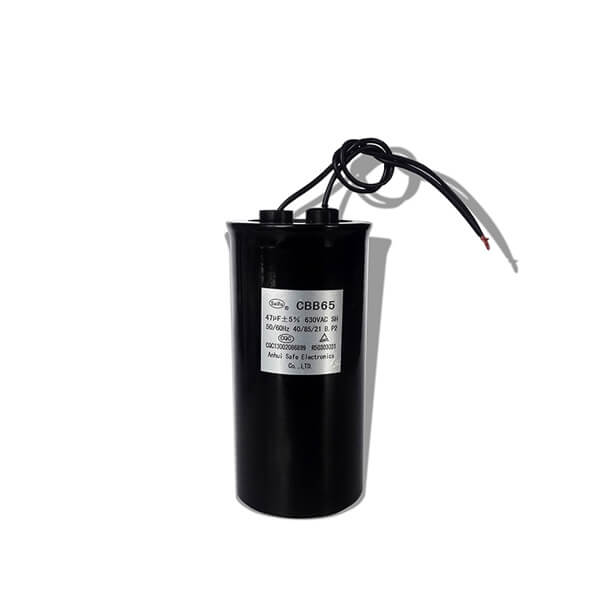

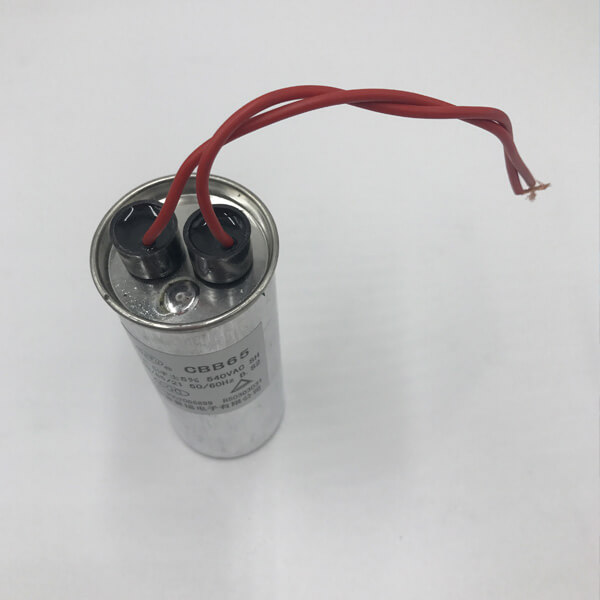

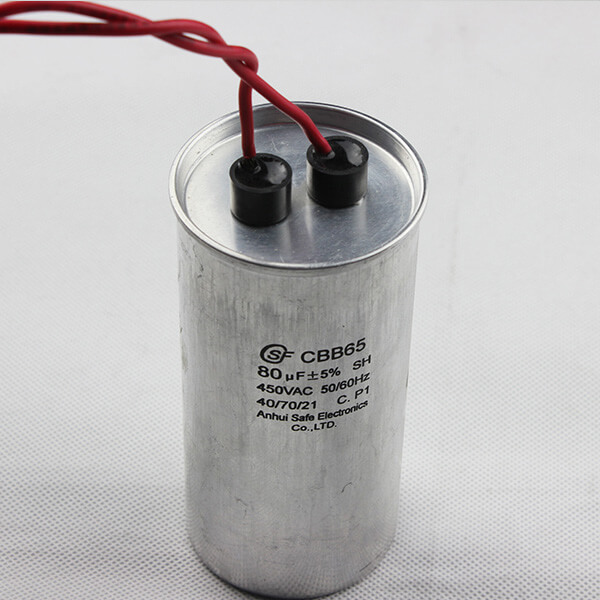

CBB65 Running Capacitor with 2 Wires

CBB65 Motor Run Capacitors (Round-Shaped, Single Capacitance Value or dual Capacitance Value)

CBB65 Motor Run Capacitors feature a low-loss, self-healing Metalized Polypropylene Film dielectric system, which is castor oil-filled. The motor-run capacitors with Single capacitance values are offered in voltages ranging from 240 through 660 VAC and with a Single capacitance range of 0.5 to 120 microfarads. The motor-run capacitors are designed to operate in continuous duty over a broad temperature range from -40°C to +85°C with fully rated 50/60 Hz. AC voltage applied. CBB65 motor-run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). The case is aluminum round-shaped cans and standard terminations are 2*4 terminals. it also have 1*1pin,2*2pin,4*4pin,2*3*4pin or wire.

CBB65 capacitor has the advantages of small volume, lightweight, low dissipation, high insulation resistance, good self-healing character, anti-striking current, strong over-carrying capacity, steady electricity performance, and reliable safety with inner anti-explosion, etc.

Specification of CBB65 Running Capacitor with 2 Wires

Reference standards	GB/T 3667.1（ IEC60252-1）
Climatic category	40 / 70 / 21, 40 / 85 / 21
Class of operation	Class B (10000h) Class C (3000h)
Class of safety protection	S2
Voltage range	250VAC, 370VAC, 440VAC, 450VAC, 660VAC
Capacitance range	1～120μF
Capacitance tolerance	± 5% , ± 10%, ± 15%
Dissipation factor	20 x10^-⁴ (100Hz,20°C)
Test voltage terminal to terminal U_TT	2 Un for 2 seconds
Test voltage terminal to case U_TC	(2Un+1000)VAC or 2000VAC- 50Hz for 60 seconds
Insulation Resistance	≥3000s (100Hz，20°C，1min)

Application of CBB65 Running Capacitor with 2 Wires

Possible applications include; electric motors, pumps, air conditioning, compressor, lighting, and general-purpose AC applications.

Blower Capacitor

Single Type CBB65 AC Motor Capacitors Dimensions(mm):

NO.	production specifications	terminal	size
1	CBB65-450VAC 1μF ～9μF	11 or 24 or 22 or 44	φ40*60
2	CBB65-450VAC-10μF	11 or 24 or 22 or 44	φ40*60
3	CBB65-450VAC-12.5μF	11 or 24 or 22 or 44	φ40*70
4	CBB65-450VAC-15μF	11 or 24 or 22 or 44	φ45*70
5	CBB65-450VAC-20μF	11 or 24 or 22 or 44	φ50*75
6	CBB65-450VAC-25μF	11 or 24 or 22 or 44	φ50*85
7	CBB65-450VAC-30μF	11 or 24 or 22 or 44	φ50*100
8	CBB65-450VAC-35μF	11 or 24 or 22 or 44	φ50*100
9	CBB65-450VAC-40μF	11 or 24 or 22 or 44	φ50*100
10	CBB65-450VAC-45μF	11 or 24 or 22 or 44	φ50*100
11	CBB65-450VAC-50μF	11 or 24 or 22 or 44	φ50*125
12	CBB65-450VAC-55μF	11 or 24 or 22 or 44	φ50*125
13	CBB65-450VAC-60μF	11 or 24 or 22 or 44	φ50*125
14	CBB65-450VAC-65μF	11 or 24 or 22 or 44	φ55*125
15	CBB65-450VAC-70μF	11 or 24 or 22 or 44	φ55*125
16	CBB65-450VAC-80μF	11 or 24 or 22 or 44	φ60*125
17	CBB65-450VAC-90μF	11 or 24 or 22 or 44	φ60*125
18	CBB65-450VAC-100μF	11 or 24 or 22 or 44	φ63.5*125
19	CBB65-450VAC-120μF	11 or 24 or 22 or 44	φ63.5*125

Note: Other specifications and sizes of the terminal outside the table are negotiable.

Features of CBB65 Running Capacitor with 2 Wires

Widely applied to the starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
Self-healing property.
Good stability and reliability.
Safer with Explosion-proofed design.
Round capacitor, can be provided oval capacitor.
Single capacitor, can be provided double capacitor.
