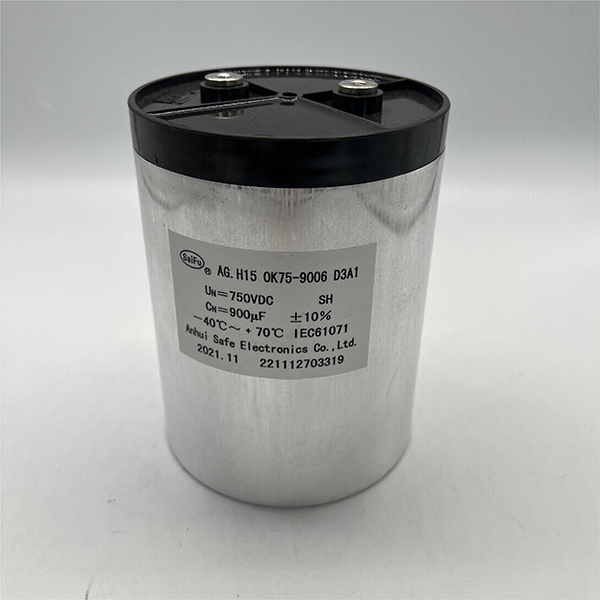

Name: DC Link Capacitor 500uf-900uf
Brand: Anhui Safe Electronics Co., Ltd.

Specification of DC Link Capacitor 500uf-900uf

Cn	Rs	Imax	Î	WN	Ls	D x L	Drawing		m	Order No.
(μF)	(mΩ)	(A)	(KA)	(Ws)	(nH)	(mm)	Drawing		(Kg)	Order No.
Un 700VDC Us 1050v Ur 200V U t-t 1050 VDC Ut-c 3000 VAC
370	2.1	40	2	86	50	Φ76 x 130	A, B, C, D		0.7	AG.H13 0K70-3706D76
440	1.8	40	2.3	103	50	Φ76 x 145	A, B, C, D		0.8	AG.H14 0K70-4406D76
470	1.7	55	2.5	110	40	Φ86x 130	A, B, C, D		0.9	AG.H13 0K70-4706D86
560	1.4	40	3	132	60	Φ76 x 181	A, B, C, D		1	AG.H18 0K70-5606D76
590	1.3	55	3.1	137	40	Φ86x 145	A, B, C, D		1	AG.H14 0K70-5906D86
730	1.1	55	3.9	171	50	Φ86x 181	A, B, C, D		1.2	AG.H18 0K70-7306D86
1030	1	55	5.1	252	70	Φ86x 225	A, B, C, D		1.5	AG.H22 0K70-1037D86
Cn	Rs	Imax	Î	WN	Ls	D x L	Drawing		m	Order No.
(μF)	(mΩ)	(A)	(KA)	(Ws)	(nH)	(mm)	Drawing		(Kg)	Order No.
Un 900VDC Us 1350v Ur 200V U t-t 1350 VDC Ut-c 3000 VAC
350	2.1	40	2	148	50	Φ76 x 130		A, B, C, D	0.7	AG.H13 0K90-3506D76
410	1.2	40	2.3	178	50	Φ76 x 135		A, B, C, D	0.8	AG.H13 0K90-4106D76
470	1	55	2.5	191	40	Φ86x 135		A, B, C, D	0.9	AG.H13 0K90-4706D86
540	1.4	40	3	229	60	Φ76 x 181		A, B, C, D	1	AG.H18 0K90-5406D76
560	1.3	55	3.1	238	40	Φ86x 145		A, B, C, D	1	AG.H14 0K90-5606D86
700	1.1	55	3.9	297	50	Φ86x 181		A, B, C, D	1.2	AG.H18 0K90-7006D86
1020	1	60	5.1	413	70	Φ86x 225		A, B, C, D	1.5	AG.H22 0K90-1027D86
Un 1100VDC Us 1650v Ur 250V U t-t 1650 VDC Ut-c 3000 VAC
240	3.3	50	1.5	170	50	Φ76 x 130	A, B, C, D		0.7	AG.H13 1K10-2406D76
300	2.6	50	1.9	216	60	Φ76 x 145	A, B, C, D		0.8	AG.H14 1K10-3006D76
320	2.4	65	2	232	40	Φ86x 130	A, B, C, D		0.9	AG.H13 1K10-3206D86
380	2.2	50	2.3	270	60	Φ76 x 181	A, B, C, D		1	AG.H18 1K10-3806D76
400	2	65	4.2	242	50	Φ86x 156	A, B, C, D		1.2	AG.H15 1K10-4006D86
500	1.5	70	6	303	60	Φ86x 186	A, B, C, D		1.3	AG.H18 1K10-5006D86
600	1.6	60	4.2	363	70	Φ86x 225	A, B, C, D		1.5	AG.H22 1K10-6006D86
1200	0.9	100	7.8	726	80	Φ120x 230	A, B, C, D		2.5	AG.H23 1K10-1207D120
Un 1200VDC Us 1800v Ur 250V U t-t 1800 VDC Ut-c 3000 VAC
320	2.5	62	2.88	230	65	Φ76x 155	A, B, C, D		1.1	AG.H15 1K20-3206D76
420	1.8	65	2.97	238	50	Φ86x 175	A, B, C, D		1.2	AG.H17 1K20-4206D86
470	1.7	65	4	338	60	Φ86x 195	A, B, C, D		1.5	AG.H19 1K20-4706D86
Un 1300VDC Us 1950v Ur 300V U t-t 1950 VDC Ut-c 3000 VAC
160	2.1	40	1.8	138	50	Φ76 x 130	A, B, C, D		0.7	AG.H13 1K30-1606D76
200	2.2	40	2	168	60	Φ76 x 145	A, B, C, D		0.8	AG.H14 1K30-2006D76
220	2	50	2.2	185	40	Φ86x 130	A, B, C, D		0.9	AG.H13 1K30-2206D86
250	2.1	40	2.4	208	60	Φ76 x 181	A, B, C, D		1	AG.H18 1K30-2506D76
270	1.4	50	2.6	227	50	Φ86x 145	A, B, C, D		1	AG.H14 1K30-2706D86
330	1.6	50	3	281	60	Φ86x 181	A, B, C, D		1.2	AG.H18 1K30-3306D86
460	2.1	60	4.1	390	70	Φ86x 225	A, B, C, D		1.5	AG.H22 1K30-4606D86
Cn	Rs	Imax	Î	WN	Ls	D x L	Drawing		m	Order No.
(μF)	(mΩ)	(A)	(KA)	(Ws)	(nH)	(mm)	Drawing		(Kg)	Order No.
Un 1500VDC Us 2250v Ur 300V U t-t 2250 VDC Ut-c 3000 VAC
110	2.1	35	1.6	133	50	Φ76 x 130	A, B, C, D		0.7	AG.H13 1K50-1106D76
140	2.2	35	2	159	60	Φ76 x 145	A, B, C, D		0.8	AG.H14 1K50-1406D76
150	1.8	45	2.2	174	40	Φ86x 130	A, B, C, D		0.9	AG.H13 1K50-1506D86
190	1.7	35	2.8	217	60	Φ76 x 181	A, B, C, D		1	AG.H18 1K50-1906D76
250	1.3	45	3.5	278	50	Φ86x 181	A, B, C, D		1.2	AG.H18 1K50-2506D86
345	1.9	60	5	389	70	Φ86x 225	A, B, C, D		1.5	AG.H22 1K50-3456D86
Un 1800VDC Us 2700v Ur 400V U t-t 2700 VDC Ut-c 3000 VAC
120	1.6	50	1.8	198	50	Φ86 x 130	A, B, C, D		0.9	AG.H13 1K80-1206D86
140	2	40	2	226	60	Φ76 x 181	A, B, C, D		0.9	AG.H18 1K80-1406D76
185	1.4	50	2.5	299	60	Φ86 x 181	A, B, C, D		1.2	AG.H18 1K80-1856D86
260	2.4	60	3	424	70	Φ86 x 225	A, B, C, D		1.5	AG.H22 1K80-2606D86
Un 2200VDC Us 3200v Ur 500V U t-t 3200 VDC Ut-c 4000 VAC
75	1.4	50	2.2	222	50	Φ86 x 130	A, B, C, D		0.9	AG.H13 2K20-7505D86
90	2	40	3.2	260	60	Φ76 x 181	A, B, C, D		1	AG.H18 2K20-9005D76
120	1.2	50	3.5	346	60	Φ86 x 181	A, B, C, D		1.2	AG.H18 2K20-1206D86
165	1.9	60	4.5	477	70	Φ86 x 225	A, B, C, D		1.5	AG.H22 2K20-1656D86
Un 2600VDC Us 4000v Ur 700V U t-t 4000 VDC Ut-c 4500 VAC
50	1.4	50	1.6	181	50	Φ86 x 130	A, B, C, D		0.9	AG.H13 2K60-5005D86
65	1.5	40	2	218	60	Φ76 x 181	A, B, C, D		1	AG.H18 2K60-6505D76
80	1.2	50	2.5	283	60	Φ86 x 181	A, B, C, D		1.2	AG.H18 2K60-8005D86
115	2	60	3.3	392	70	Φ86 x 225	A, B, C, D		1.5	AG.H22 2K60-1156D86

Note: Other specifications and sizes outside the table are negotiable.

Applications of DC Link Capacitor 500uf-900uf

Widely Used in wind power, solar power, DC support filter circuit or other industrial frequency converters. Can replace electrolytic capacitors, better performance and longer life.
